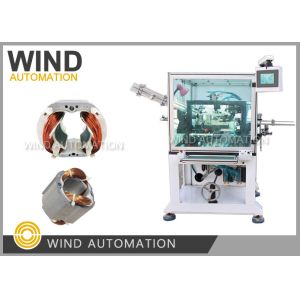

Automatic Winding Machine Two Pole Electric Motor Stator Field Coil

Name: Automatic Winding Machine Two Pole Electric Motor Stator Field Coil
Brand: WIND AUTOMATION
Price: 1 USD

Brand Name : WIND AUTOMATION

Model Number : WIND-SW-2

Certification : CE

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T

Delivery Time : 60 Working days

Packaging Details : Pallet

Coil Winding and Tapping : Stator Filed Coil Winding, have tapping option

Electric Motor Stator Poles : 2 Poles Universal Motor

Two Pole Stators : Mixer,grinder,power tool,vacuum cleaner motor stator

Station : Two Working Station

Machine Color : White or Per Customer Requirement

After sales : Engineers available to service machinery overseas

Contact Now

Two Pole Electric Motor Stator Field Coil Automatic Winding Machine WIND-SW-2

Application:

Two Poles Inslot Stator covering mixer, grinder, power tool ,vacuum cleaner filed coil winding

Advantages:

1. Automatic Clamping Wire, Winding, Tapping (if needed), Indexing, Cutting

2. Easy Operation, the operator only need to assemble stator on fixture and load/unloading fixture

3. Very popular for developing countries' motor manufacturers including India Top 5 mixer producers

Parameter:

Wire range: 0.15—1.3mm

Stack length: 20—60mm

Pole: 2

Turns range: 0—99999

Stator O.D: 50—150mm

Main spindle speed: 0—450RPM

Air pressure: 5-7kg/cm2

Voltage:415v/3, 50/60HZ

Motor power: 4.5KW

Weight: 1.2T

Dimension: 1050*2300*1750mm

NCM No / HS Code: 8479811000

Stator Winder Feature:

Stator filed coil winding machine application

Mixer,grinder,powder tooling,vacuum cleaner motor

2 pole stator

Winding type

Needle winding not flyer winding

Stator winder process

Manual load on stator, automatic winding, manual

unloading

Please click below picture to view stator wider appearance video
